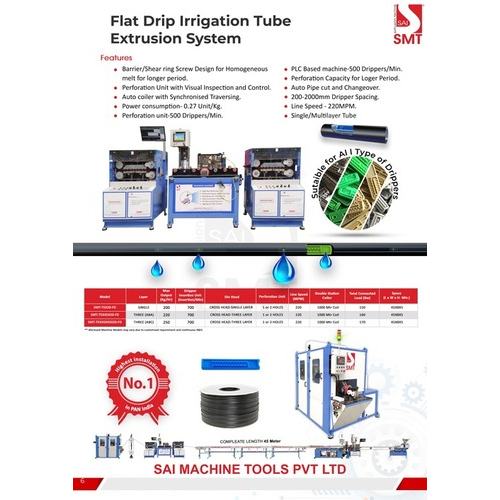

Drip Irrigation Tube Extrusion Plant



Drip Irrigation Tube Extrusion Plant

Product Code : 25

Product Specification

Drip Irrigation Tube Extrusion Plant

Salient Feature

  • Equipped with melt temperature indicator & melt pressure transducer.
  • Whole System can support high line speed
  • PLC based heating control system with touch screen interface.
  • Inbuilt servo stabilizer
  • Inbuilt micro chiller for insersion rod.
  • SerVo driven perforation unit for accurate drilling with touch screen interface.
  • Two station coiler unit with servo control.

IN LINE DRIP IRRIGATION TUBE EXTRUSION LINE FOR FLAT DRIPPER

DRIPPER INSERTION SYSTEM

250 PIECES PER MINUTE

EXTRUDER 75 mm Screw OD

200 KG/HR.

CROSS HEAD

SPECIALLY DESIGNED CROSS HEAD FOR 12 MM & 16 MM PIPE OD

VACUUM CALIBRATION TANK & COOLING TANK

ALL STAINLESS STEEL
TOTAL COOLING LENGTH :20 mtr

PERFORATION UNIT

ONE HOLE

CATERPILLAR TYPE HAUL-OFF

MAX LINE SPEED : 100 METER/MINUTE
TWO NO.

DOUBLE STATION COILER

100 METER COILS
MAXIMUM LINE SPEED 100 METER/MINUTE, PITCH CONTROL BY SERVO DRIVE

TOTAL CONNECTED LOAD

68 KW

SPACE REQUIREMENT

35 M (L) * 6 M (W) * 5 M (H)
